solution characteristics

Computer control to eliminate human error; Powerful database to provide more color selection; Planned production and real-time production functions shorten production time; Powerful management function, effectively reduce QC operation; Guarantee the accuracy of color matching and improve the reproducibility of color. Rational planning and reduction of stock of raw materials and finished products; Increase production efficiency and reduce labor costs; Ensure accurate production traceability; Reduce pollution and protect environment.

Fixed Automatic Water-based Ink Paint Dispenser

Automatic water-based ink /paint dispenser is suitable for accurate distribution of water-based ink and paint .
Number of valves: up to 24
Valve Size: DN8-DN40
Pump Size: DN15-DN40
Electronic Scale: 7-1500kg
accuracy: up to 0.1g
efficiency: 3-4 min/20 kg 6-8 min/200 kg 20-30 min/1500 kg

Single Point Automatic Water-based Ink Paint Dispenser

Number of valves: up to 96
Valve size: DN8-DN65
Pump size: DN15-DN65
Electronic Scale: 7-1500kg
Dispensing accuracy: maximum 0.1g
efficiency:4-5 min/20 kg 8-10 min/200 kg 20-30 min/1500 kg

Automatic Solvent-based Ink /Paint Dispenser

Automatic solvent-based ink and paint dispenser is suitable for dispensing of solvent-based ink and paint. The pumps, valves, pipes and control systems used can stand all solvent-based materials. The explosion-proof design meets the requirements of Zone 1 or Zone 2.
Number of valves: up to 24
Valve Seal: O-ring Free Seal
Explosion-proof type: positive pressure explosion-proof
EX grade: Zone 1 or Zone 2
Valve Size: DN20-DN40
Pump Size: DN15-DN40
Electronic Scale: 7-1500kg
Dispensing accuracy: up to 0.1g
efficiency: 3-4 min/20 kg 6-8 min/200 kg 20-30 min/1500 kg

Single Point Automatic Solvent-based Ink /Paint Dispenser

Number of valves: up to 96
Valve Seal: O-ring Free Seal
Explosion-proof type: positive pressure explosion-proof
Ex grade: Zone 1 or Zone 2
Valve Size: DN20-DN65
Pump Size: DN15-DN65
Electronic Scale: 7-1500kg
Dispensing accuracy: up to 0.1g
efficiency: 3-4 min/20 kg 6-8 min/200 kg 20-30 min/1500 k

Automatic UV flexible ink Dispenser

Based on the characteristics of UV ink, a special valve for UV ink was developed. The patent valve has the characteristics of no O-ring. It solves the problems that have plagued the industry for many years and proves its stability and reliability in practical use.
Number of valves: up to 24
Valve Seal: O-ring Free Seal
Valve Size: DN8-DN20
Pump Size: DN15-DN25
Electronic Scale: 7-30KG
Dispensing accuracy: up to 0.1g
efficiency:3-4 min/20 kg

Automatic offset ink Dispenser

This equipment solves the problem of spot color ink and small batch production in offset printing. The new scissors multi-stage valve solves the problem of high precision dispensing of very high viscosity ink. Offset ink dispenser can be dispensed in small cans or connected with pump.
Number of valves: up to 18
Electronic Scale: 7-30KG
Dispensing accuracy: up to 0.5g
efficiency:5-6min/20 kg

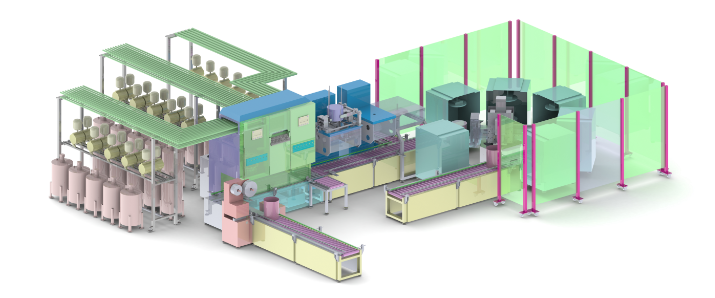

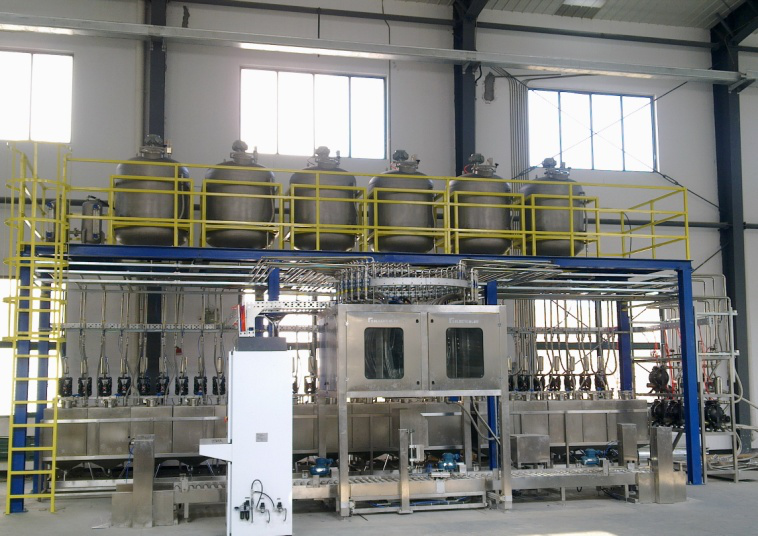

Automatic paint production line for factory

With the improvement of environmental protection requirements, the environmental protection pressure of paint production industry is increasing. Because of the intermediate process of container cleaning and pipeline equipment cleaning, the traditional production mode inevitably produces waste liquids, which require high cost. At present, the trend of paint production is more and more inclined to be integrated. The production line with color mixing, filling, capping, labeling, mixing and packaging, without cleaning containers and pipes, not only meets the requirements of environmental protection, but also solves the requirements of small batch and personalized production. This production mode has been adopted by many paint manufacturers
